China is a significant global player in the manufacturing of sewing machines, including Single Head Automatic Elastic Cutting and Sewing Machines. Chinese companies have established themselves as major suppliers of textile machinery, catering to both domestic and international markets.
HD Single Head Automatic Elastic Cutting and Sewing Machine is a specialized sewing machine designed to cut and sew elastic materials automatically. It is commonly used in the textile and garment industry for producing various elastic products such as waistbands, cuffs, and elasticized garments.
Features of a Single Head Automatic Elastic Cutting and Sewing Machine typically include:
1. Cutting Mechanism: The machine is equipped with a cutting mechanism that can accurately cut elastic materials to the desired length. The cutting mechanism can be adjusted to cut elastic bands of different widths.
2. Sewing Mechanism: It has a sewing mechanism that can automatically sew the cut elastic pieces together. The machine can perform different types of stitches, such as straight stitches or zigzag stitches, depending on the requirements of the product being produced.
3. Automatic Operation: The machine is designed to operate automatically, reducing the need for manual intervention. It can be programmed to cut and sew elastic materials in a specific pattern or design, allowing for efficient and consistent production.
4. Adjustable Tension: Elastic materials require a specific level of tension while sewing to ensure proper elasticity and durability. A Single Head Automatic Elastic Cutting and Sewing Machine often comes with adjustable tension settings to accommodate different types and thicknesses of elastic materials.
5. Speed Control: The machine offers adjustable speed control, allowing operators to set the sewing speed according to the requirements of the production process. This feature enables efficient production while maintaining stitching accuracy.
6. User Interface: The machine may have a user-friendly interface, such as a digital display or control panel, to facilitate easy operation and programming.
Single Head Automatic Elastic Cutting and Sewing Machines are designed to increase productivity and accuracy in the production of elastic-based products. By automating the cutting and sewing processes, these machines can save time and labor costs, while ensuring consistent and high-quality results.
● Voltage: 220V Power: 2000W
● Gas Pressure: 0.4-0.5Mpa
● Dimension: L 1.8m W 1. 1m H 1.75m
● Weight: 280KG
Function |
U Ultrasonic |
CCD isual system |
ARJ Auto remove Color sensor |
KBC Rotary collector |
M Auto mark |
I Ironing |
ARJ Auto remove Height sensor |
Details | |||||||
" √" is Standard " is Cptional |
0 | 0 | 0 | √ | √ | √ | √ |

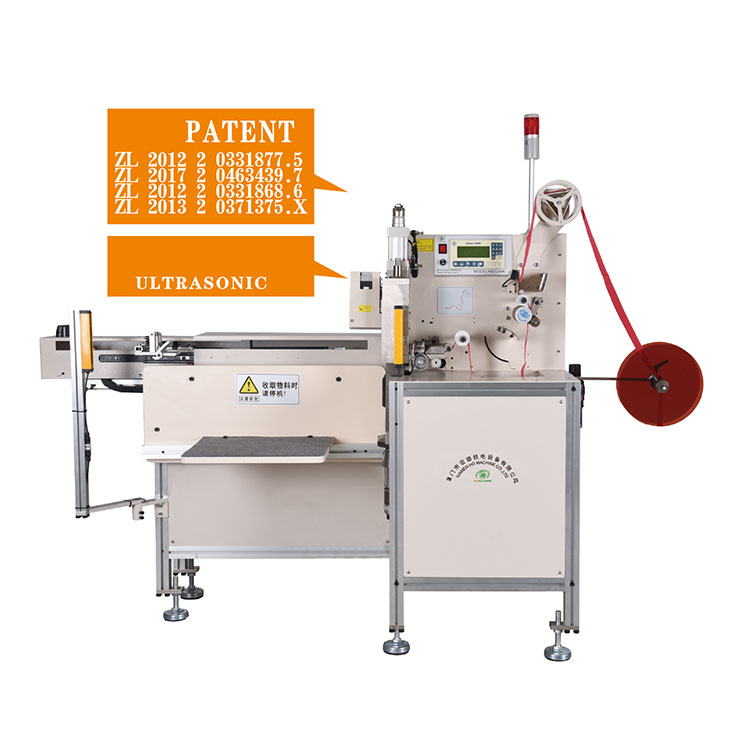

● Auto feeding and cutting with single sewing machine head to sew. Used to auto cut and sew the elastic band or briefs.It is available to choose ptychoid or not. Range of ptychoid: 0-25mm.
● This machine with the function of clod cut,ultrasonic cut (Scissors and ultrasonic can be used in exchange), visual system(Logo center) and auto remove joint.
● Customer can do partial invest according to the requirement.If choose the standard machine first,in the future, with the higher requirement of operation,customer can add the ultrasonic and visual system on the existed
machine. Making cost reduction,no need to purchase another machine.
● Size range of elastic tape L150mm(5 9/10")- 1200mm(47 7/8") (Margin of Error:±2mm in 100cm), W15(5/8")-70mm(2" 3/4").
